EMC Bundles
EMC Bundles
Designing EMC test system often proves to be a challenge. Therefore, Raditeq has put together several EMC test bundles, aimed at specific and standardized EMC tests. This enables you to perform EMC tests using turnkey solutions at affordable prices.
Select Your Test
Radiated Immunity
Radiated GTEM Immunity
Emission Add-on Option
Conducted Immunity Bundles
| Product Name | Range | Test Level | Standard(s) | Applications | Get Quote |
|---|---|---|---|---|---|
| CIB025A | 9 kHz - 250 MHz | 3 Vrms | IEC61000-4-6 IEC61000-6-1 EN55014-2 EN55035 EN61326-1 EN60601-1-2 | Residential Household Multimedia Laboratory Medical | |
| CIB075A | 9 kHz - 250 MHz | 10 Vrms | IEC61000-4-6 IEC61000-6-2 | Industrial | |
Experience
Raditeq founded in 1992 and located at Woerden in the center of the Netherlands has all the experience needed to design and build specific EMC test bundles and guarantee the overall EMC system performance required by the EMC standards. Raditeq has most of the components for each bundle in its own portfolio, ranging from the RadiMation automated EMC test software to the RadiCentre modular test system with all available EMC test and measurement plug-in cards.
Training
The system may be perfect but in the end the results mainly depend on the people who are working with it. Experienced employees of Raditeq will train your staff how to use the hardware and RadiMation EMC software. Apart from this we can realize specialized trainings starting from CE-marking (Europe) to in depth EMC test & measurement techniques, including EMC troubleshooting. This way you ensure the EMC test system is used to its full capabilities and benefits.
Guaranteed performance
As bundles from Raditeq have been supplied to many customers, Raditeq can fully guarantee the performance of any bundle to deliver the required and full compliance performance.
Maintenance & Warranty
Raditeq offers a three-year warranty on its own system components and a minimum of two years warranty on parts from other parties. However, each installation needs maintenance. Once a bundle is delivered and fully operational, Raditeq can offer a full maintenance package on the complete installation, including calibration to ensure quality and full system availability.
Bulk Current Injection - Bundles
| Product Name | Range | Test Level | Standard(s) | Applications | Get Quote |
|---|---|---|---|---|---|
| BCI140A | 9 kHz - 400 MHz | 100 Watt | ISO11452-4 Mld-Std CS114 | Automotive Military Testing | |
| BCI240A | 9 kHz - 400 MHz | 200 Wat | ISO11452-4 Mld-Std CS114 | Automotive Military Testing | |
Radiated Immunity RadiField® Bundles
| Product Name | Range | Test Level | Standard(s) | Applications | Get Quote |
|---|---|---|---|---|---|
| RIB103A | 1GHz – 6GHz | 3 Vrms | IEC61000-4-3 IEC61000-6-1 EN55014-2 EN55035 EN61326-1 EN60601-1-2 | Residential Household Multimedia Laboratory Medical | |
| RIB110A | 1 GHz - 6 GHz | 10 Vrms | IEC61000-4-3 IEC61000-6-1 EN55014-2 EN55035 EN61326-1 EN60601-1-2 | Industrial | |
| RIB603A | 80 MHz - 6 GHz | 3 Vrms | IEC61000-4-6 IEC61000-6-2 | Residential Household Multimedia Laboratory Medical | |
| RIB610A | 80 MHz - 6 GHz | 10 Vrms | IEC61000-4-6 IEC61000-6-2 | Industrial | |

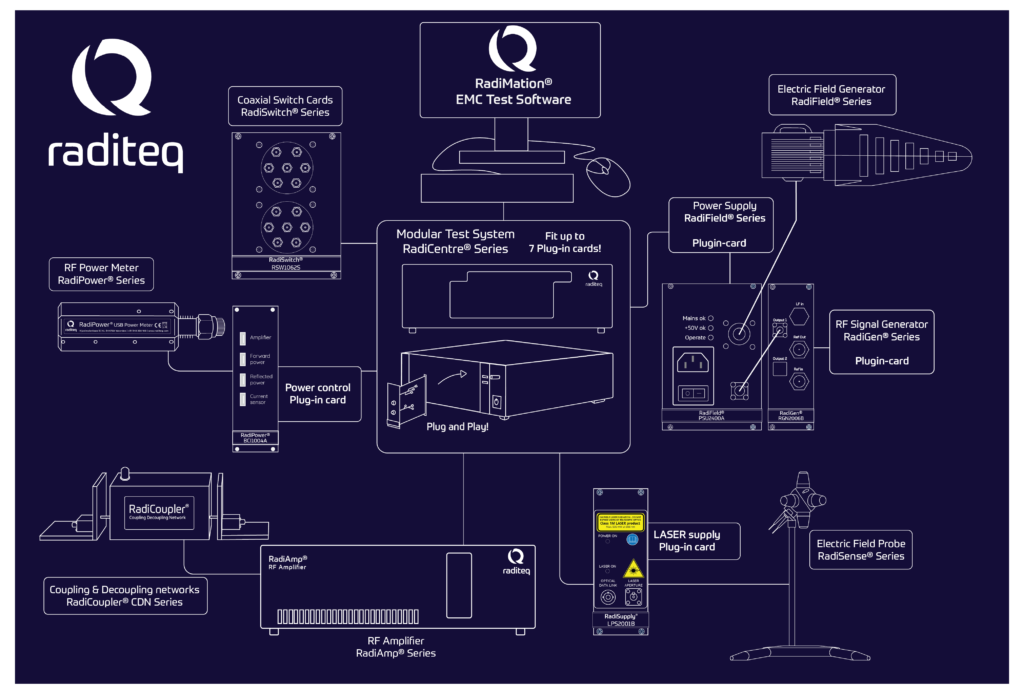

The Radiated Immunity bundle consists of:
- RadiMation automated EMC test software

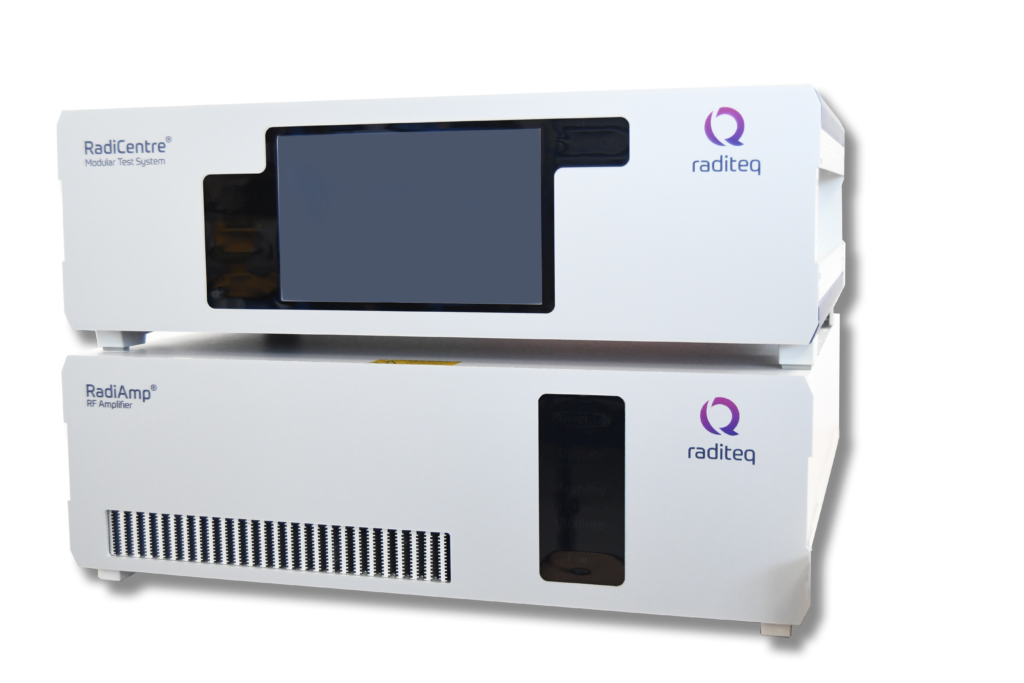

- RadiCentre 7-slot modular test system
- RadiGen 4 kHz – 6 GHz signal generator
- RadiAmp RF power amplifier 80 MHz – 1 GHz + antenna (only for RIB6xxA).

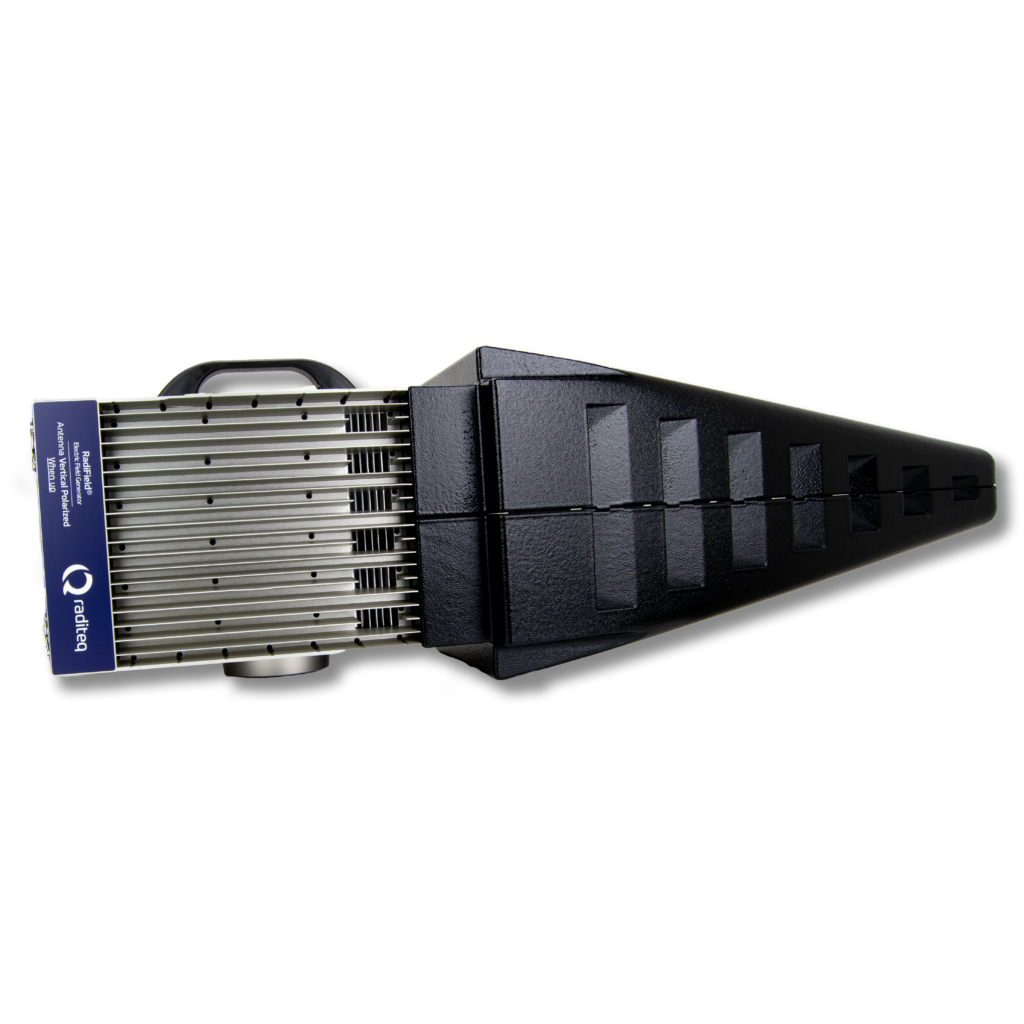

- RadiField E-field generator 1 – 6 GHz
- RadiField antenna mast with H/V positioner
- Two RadiPower EMC power meters 9 kHz – 6 GHz (only for RIB6xxA).
- RadiSense E-field probe from 9 kHz – 10 GHz
- RadiSwitch coaxial relay card
- Including 19-inch rack & Power Distribution
- All required cabling

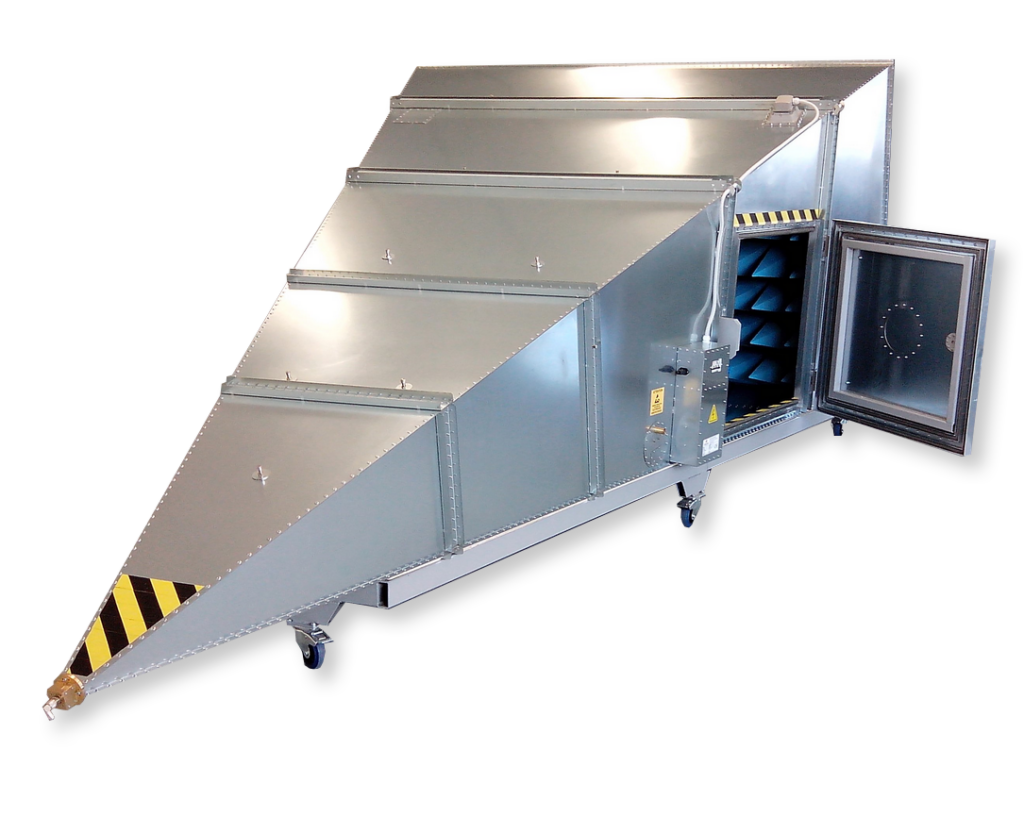

Radiated Immunity GTEM Cell Bundles
| Product Name | Range | Test Level | Septum Height | Get Quote |
|---|---|---|---|---|
| RIB110A | 1 GHz - 6 GHz | 10 Vrms | 250 mm | |
| RIB603A | 1 GHz - 6 GHz | 3 Vrms | 500 mm |
The Radiated Immunity GTEM Cell bundle consists of:
- RadiMation automated EMC test software
- RadiCentre 7-slot modular test system
- RadiGen 4 kHz – 6 GHz signal generator
- RadiAmp RF power amplifier .
- RadiPower EMC power meters 9 kHz – 6 GHz
- RadiSense E-field probe from 9 kHz – 10 GHz
- RadiSwitch coaxial relay card
- GTEM Cell 25 CM septum Height – 50 CM
- Including 19-inch rack & Power Distribution
- All required cabling
