CIB075A | Conducted Immunity Test Bundle | 75W
RadiGen
RadiCentre 2 slots
RadiAmp Amplifiers
RadiPower 4000

Specifications

Model
CIB075A

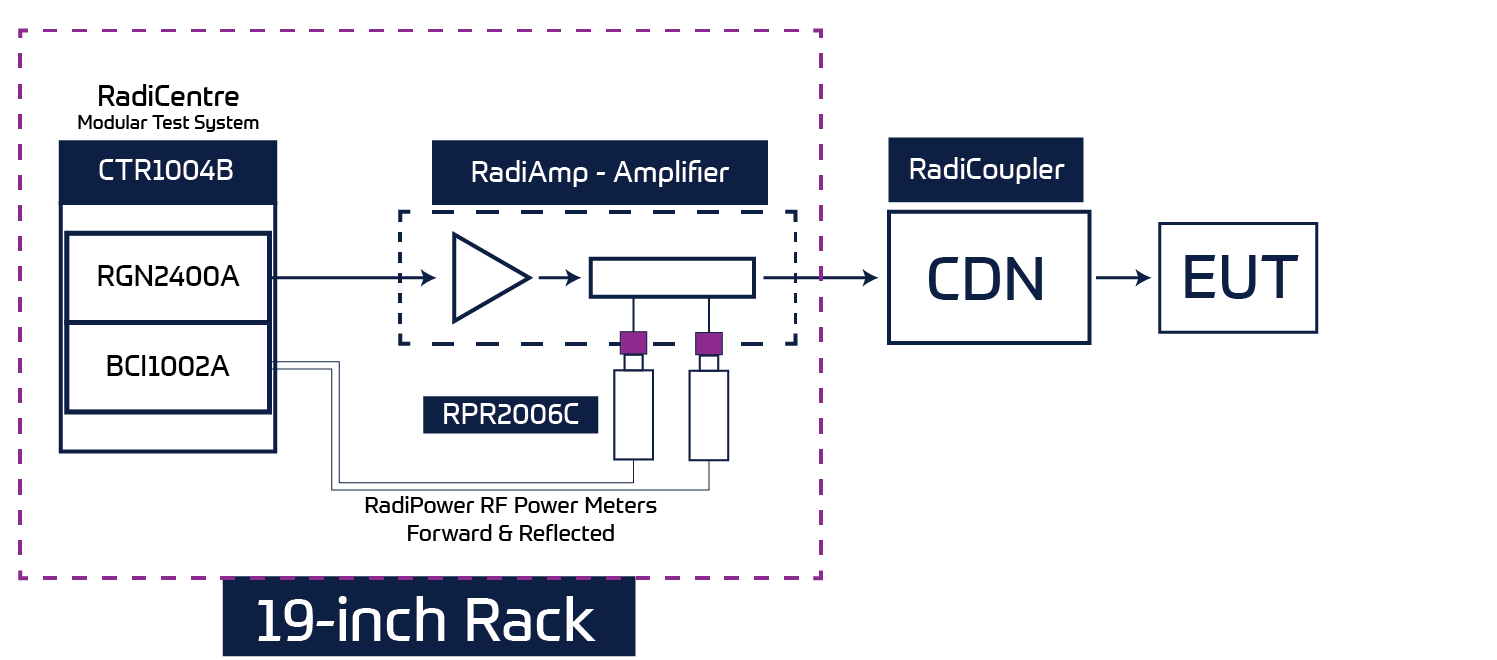

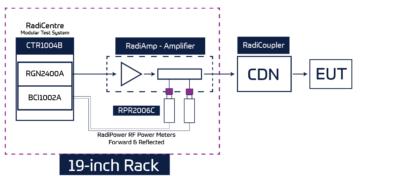

A ready to use total solution for Conducted Immunity testing for the multiple EMC standard & Directives

  • Frequency range: 9 kHz – 250 MHz
  • Test level output: 10 Vrms
  • Power output – Amplifier 75 Watt



  • CTR1009B | RadiCentre 7-slot
  • RGN2400A | RadiGen 9kHz – 400 MHz
  • RPA0925A-075 | RadiAmp 9kHz – 250 MHz @ 75W + coupler
  • RPR2006P | RadiPower 9kHz – 6GHz (Forward Power)
  • BCI1004A | RadiPower BCI plug-in card
  • RMP3002A | RadiMation Pro + CI + RG
  • RMS2001A | RadiMation support
  • CBL2001N#SET | RadiAmp RF cable set, 0.5m + 2m coax
  • RPR2006P | RadiPower 9kHz – 6GHz | For Calibration / Reflected Power)

    IEC61000-4-6
    IEC61000-6-1
    EN55014-2
    EN55035
    EN61326-1
    EN60601-1-2

    Residential
    Household
    Multimedia
    Laboratory
    Medical

    Raditeq B.V. offers a standard warranty term of three (3) years on their products, calculated from the shipping date, under the condition that the product is registered on www.raditeq.com.
